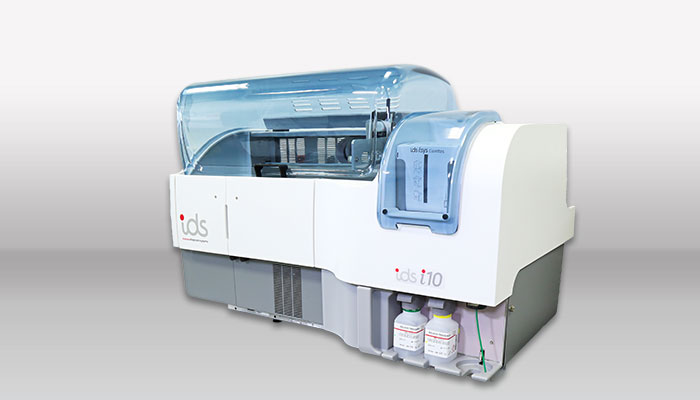

IDS-i10

The random-access device IDS-i10 (Manufacturer: IDS Immunodiagnosticsystems) is a compact automation solution for the processing of chemiluminescence immunoassays (ChLIA) in the field of autoimmune and infection diagnostics as well as antigen detection. Samples can be loaded continuously - even by connecting to a lab track – which means that each patient sample can be processed efficiently and with minimal hands-on time. Together with the priority processing of emergency samples (STAT samples), laboratories with dynamic sample throughputs and sample requirements are provided with the greatest possible flexibility in routine work.

  • Random-access instrument for batch, continuous and STAT loading.
  • Convenient operation and minimal calibration effort due to stored master curves
  • Ideal integration into the automated workflow thanks to optional connection to a lab track system
  • Simultaneous processing of autoimmune and infection parameters as well as antigen detection with only one instrument
  • Fast and efficient processing for reliable results after only 25 minutes (assay dependent)
  • High throughput of up to 170 tests per hour (assay dependent)
  • Complete traceability of samples, reagents and consumables thanks to the integrated barcode scanner

Manufacturer: IDS Immunodiagnosticsystems

  • Specifications

    Sample materialSerum, plasma, urine or saliva (assay dependent)
    Number of loading positions60 positions for samples, calibrators and controls (6 racks with 10 positions)
    Number of parametersUp to 10 different immunoassay cartridges
    Time to first result< 25 minutes (assay dependent)
    ThroughputUp to 170 tests/hour (assay dependent)
    Sample tubesPrimary tubes: 5 mL, 7 mL, 10 mL, secondary tubes: 5 mL, microvials: 500 μL, 2 mL, others can defined
    LuminometerWavelength from 300 nm - 500 nm
    SpectrophotometerSpectrophotometer with LED technology and 12 wavelength filters.
    Pipetting volumes4 μL - 300 μL (assay-dependent)
    TraceabilityIntegrated barcode readers for samples, reagent cartridges and consumables
    Online connectionASTM interface, bi-directional
    Dimensions (WxDxH)1040 mm x 605 mm x 680 mm
    Weight81 kg
