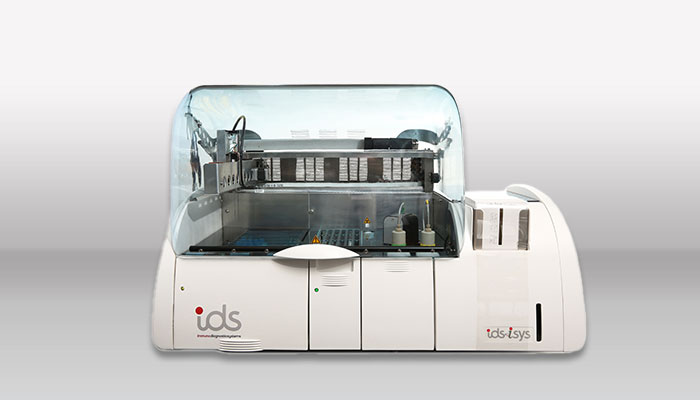

IDS-iSYS Multi-Discipline Automated System

The random-access device IDS-iSYS Multi-Discipline Automated System (Manufacturer: IDS Immunodiagnosticsystems) is a compact automation solution for the processing of chemiluminescence immunoassays (ChLIA) in the field of autoimmune, infection and allergy diagnostics as well as antigen detection. Samples can be loaded continuously which means that each patient sample can be processed efficiently and with minimal hands-on time. Together with the priority processing of emergency samples (STAT samples), laboratories with dynamic sample throughputs and sample requirements are provided with the greatest possible flexibility in routine work.

  • Random-access instrument for batch, continuous and STAT loading.
  • Convenient operation and minimal calibration effort due to stored master curves
  • Simultaneous processing of autoimmune and infection parameters as well as antigen detection with only one instrument
  • Fast and efficient processing for reliable results after only 25 minutes (depending on the test)
  • High sample throughput of up to 120 samples per hour
  • Complete traceability of samples, reagents and consumables thanks to the integrated barcode scanner

Further information on automation solutions from IDS can also be found here: IDS-iSYS Multi-Discipline Automated System | IDS

Manufacturer: IDS Immunodiagnosticsystems

  • Specifications

    Sample materialSerum, plasma, urine or saliva (assay dependent)
    Number of loading positions120 positions for samples, calibrators and controls (6 racks with 20 positions)
    Number of parametersUp to 15 different immunoassay cartridges
    Time to first result< 25 minutes (assay dependent)
    ThroughputUp to 120 tests/hour (assay dependent)
    Sample tubesPrimary tubes: 4.5 mL, 6 mL, 8.5 mL, 10 mL, secondary tubes: 5 mL, microvials: 500 μL, 2 mL
    LuminometerWavelengths from 300 to 500 nm.
    SpectrophotometerSpectrophotometer with LED technology and 12 wavelength filters.
    Pipetting volumes4 μL-300 μL (assay-dependent)
    TraceabilityIntegrated barcode readers for samples, reagent cartridges and consumables
    Online connectionASTM interface, bi-directional
    Dimensions (WxDxH)1050 mm x 750 mm x 700 mm
    Weight103 kg

  • Files

Product Management

Devices and Software

automation-pm@euroimmun.de

 IDS-i10 - ChLIA Automation

IDS-i10

IDS Automation

Product

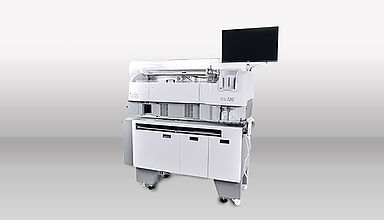

IDS-i20
